The Multidirectional Roller Top Modular Belt Conveyor System is a flexible, high-performance solution for managing complex material flows in logistics, packaging, and manufacturing. It enhances product handling with integrated roller-top modules, enabling precise sorting, orientation, and lateral transfers. The system allows double-speed conveying, where rollers over a fixed surface move items at twice the belt speed—creating gaps, improving thro...
Enables smooth lateral shifts, rotation, and alignment at transfer points using omnidirectional ball-top modules.
Supports double-speed spacing, rotation, and orientation of products with minimal drive effort.
Capable of conveying lightweight to mid-weight items up to 10,500 N/m without product damage.
Built from high-performance polymers (PP, acetal, polyamide) for long life and smooth, quiet operation.
Easily configurable for straight, curved, and diverging paths with standard bend options (45°–180°).
Supports automation with VFDs, sensors, and PLCs for speed control, jam detection, and on-demand operation.
Rollers engaged with a fixed surface move products at twice the belt speed, ideal for creating gaps, improving sortation, and reducing energy consumption.
Counter-rotating belts beneath the rollers spin products while moving forward—perfect for orientation before palletizing or scanning.
A rotating disc beneath a stopped belt enables precise, controlled rotation for tasks like labelling or inspection.
A perpendicular powered belt beneath the rollers allows side transfer without guides, used for sorting, rejecting, or line splitting based on product type or flow logic.
Sorting of polybags, cartons, and shrink-wrapped items with precise routing across multiple destinations.
Smooth handling of bottles, trays, and pouches through accumulation and re-orientation zones.
Gentle handling of packaged goods requiring hygienic material compliance and flexible routing.
Integration with robotic pick-and-place, cartonizers, or palletizers with pre-alignment of products.
Enables omni-directional movement with integrated balls/rollers for precise transferring, sorting, merging, and lane diverting, offering VFD-controlled speed, modular design, industrial-grade construction, and automation-ready PLC integration.

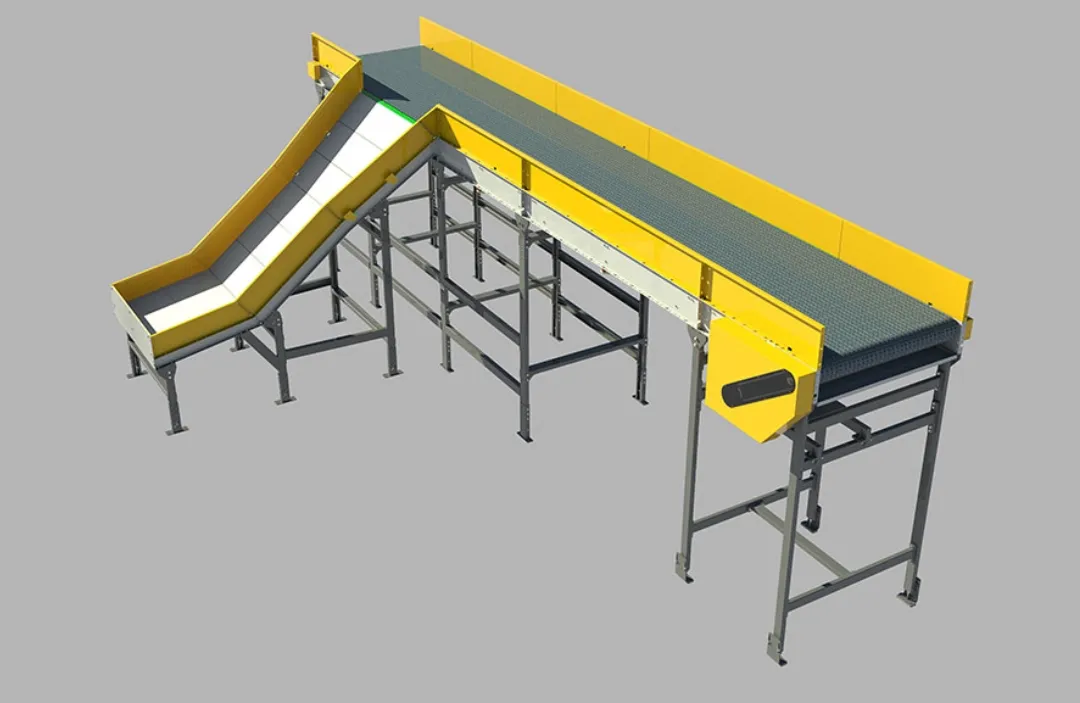

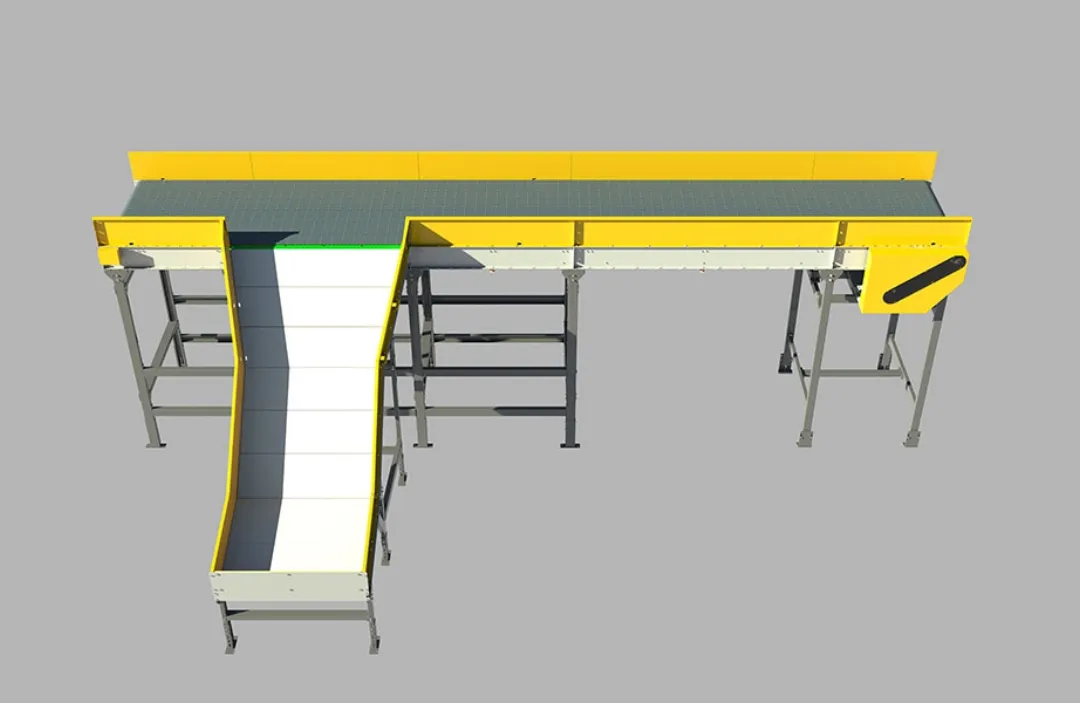

Ball Top Modular Belt Conveyor
Conveyor Type
400 mm to 1500 mm
Conveyor Width
1000 mm to 20,000 mm
Conveyor Length
Modular Plastic Belt with Integrated Activated Balls/Roller
Belt Type
25.4 mm (1 inch) & 50.8 mm (2 inch)
Belt Pitch
Ball-type or Cylinder-type
Balls/Rollers Type
12.5 mm to 50 mm diameter
Roller Size
Motor Driven Roller PVC Belt Conveyor
Roller Activation Mechanism
90° and 180° Product Transfers, Side Shifting & Alignment, Lane Diverting (multi direction)
Conveyor Functionality
5 to 60 meters per minute (VFD-controlled)
Belt Speed
Up to 125 kg per linear meter
Maximum Load Capacity
Less than 70 dB
Noise Level
Suitable for handling cartons, totes, trays, soft packaging
Product Handling
Stainless Steel 304 , Aluminum Alloy ,Mild Steel with Powder Coating
Frame & Structure Material
50 mm to 200 mm height
Side Guard Options
Rigid Floor Mounted Adjustable Supports Ceiling Hung (optional) & Mobile Frame (if required)
Support Structure
Diverters & Deflectors, Photoelectric Sensors for Product Detection, Guide Rails & Transfer Plates
Accessories & Add-Ons
End Drive/Center Drive/Multiple Drive Options
Drive Configuration
AC Gear Motor
Drive Type
Standard: 0.37 kW to 3.0 kW (Induction Motor, IP55 Rated)
Motor Specifications
230V AC Single Phase / 415V AC, Three Phase
Power Requirements
Easy Snap-On Modular Belt for Maintenance, Low Lubrication Requirement for Rollers
Maintenance Features
Operating Temp: 5°C to 50°C (Humidity: Upto 85% RH)
Environmental
Emergency Stop Push Buttons,Overload Protection, Side Guarding
Safety & Protection
PLC-based Control System, HMI Options for Operator Interface
Control & Integration
CE, ISO 9001, OSHA, UL
Compliance Standards
Belt Color & Material, Roller Material, Layout Flexibility
Customization Options
